Offers, Coupons & Promotions

X POS includes a comprehensive promotional system with POS Offers, Coupon Codes, Gift Cards, and integration with ERPNext's Promotional Scheme.


POS Offers

POS Offers are the primary promotional mechanism in X POS. They define automatic or coupon-based discounts and free product rules.

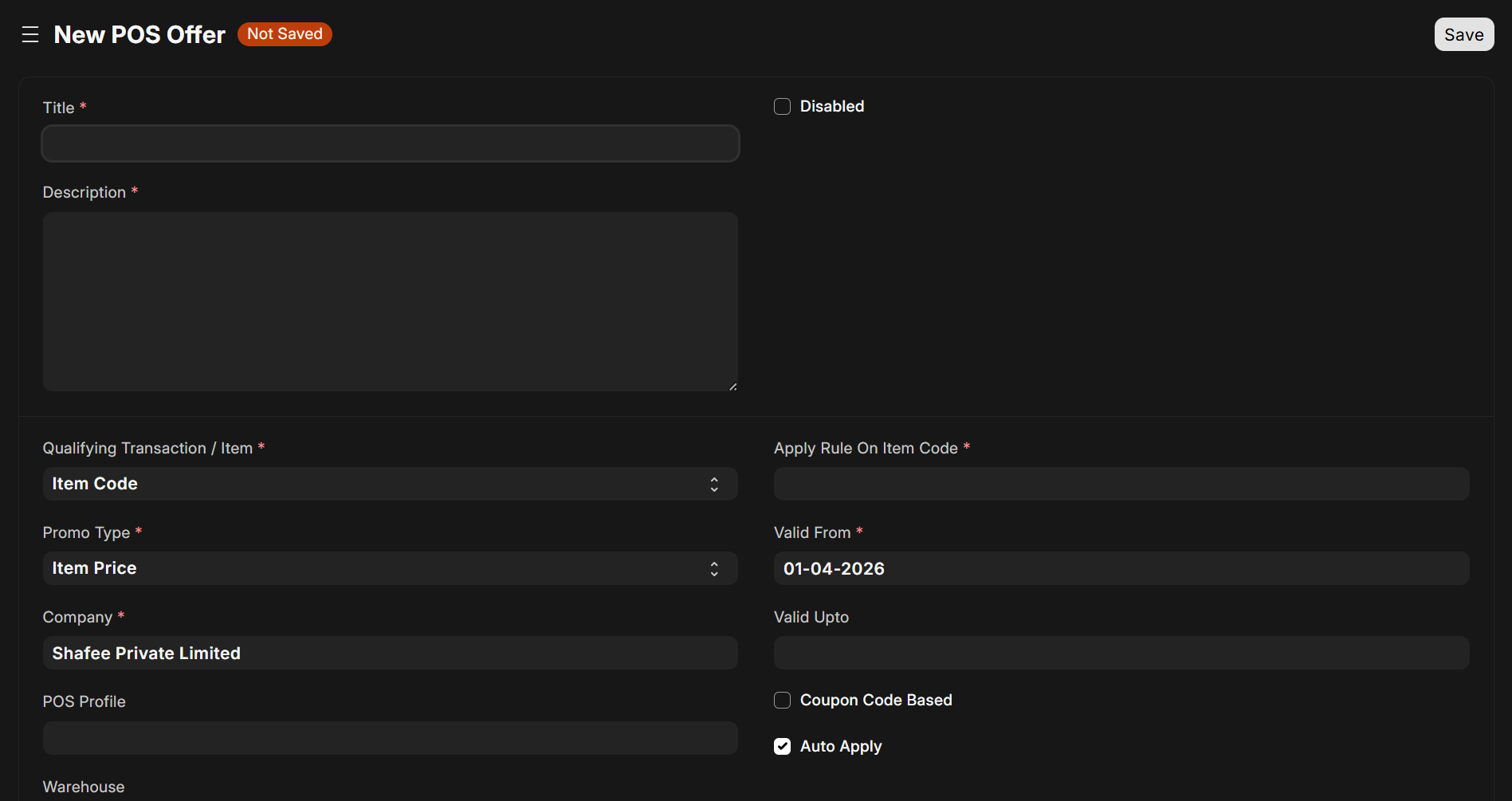

Creating a POS Offer

Navigate to POS Offer in your ERPNext instance and click + Add POS Offer.

POS Offer Fields

Field Type Description
Title Data Unique name for this offer
Description Small Text Description shown to cashiers
Disable Check Temporarily disable the offer
Company Link Company this offer applies to
POS Profile Link Specific POS Profile (optional, leave blank for all profiles)
Warehouse Link Specific warehouse (optional)

Apply On — What Triggers the Offer

Apply On Description
Item Code Offer applies when a specific item is in the cart
Item Group Offer applies when any item from a group is in the cart
Brand Offer applies when any item from a brand is in the cart
Transaction Offer applies based on the overall transaction amount

Offer Type — What the Customer Gets

Offer Type Description
Item Price Discount on the item price (percentage or fixed amount)
Give Product Free product/item added to the cart
Grand Total Discount on the overall invoice total
Loyalty Point Bonus loyalty points awarded

Conditions

Field Description
Min Qty / Max Qty Quantity range for the offer to apply (e.g., buy 3 or more)
Min Amount / Max Amount Amount range for the offer to apply
Valid From / Valid UpTo Date range for offer validity

Discount Configuration

For price/total discount offers:

Field Description
Discount Type "Percentage" or "Amount"
Rate Fixed price to set (for "Item Price" offer)
Discount Percentage Percentage off
Discount Amount Fixed amount off

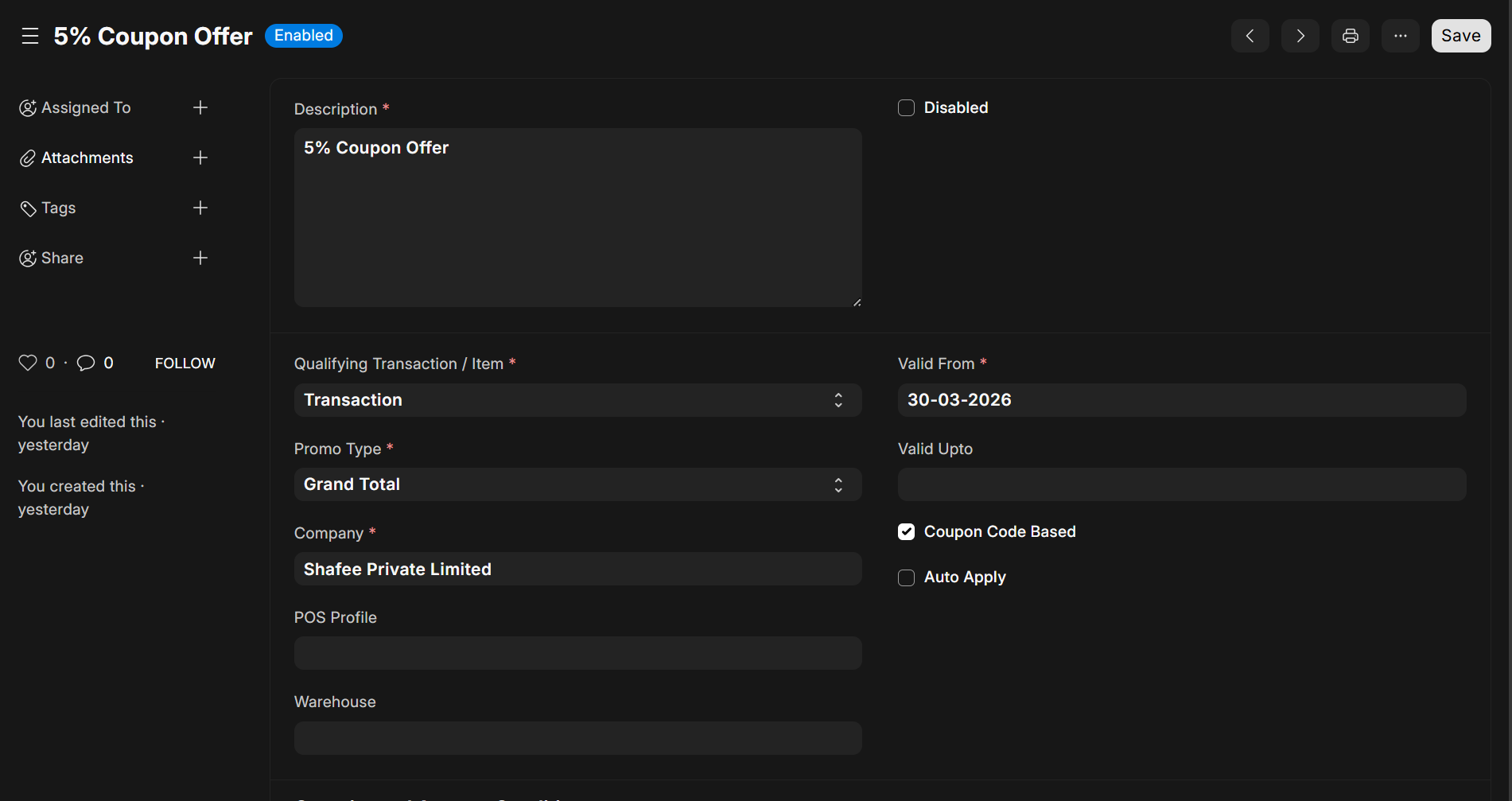

Auto vs. Coupon-Based

Field Description
Auto Default: Yes. Automatically applied when conditions are met
Coupon Based If checked, the offer requires a coupon code to activate

Give Product Configuration (For "Give Product" Offers)

When the offer type is "Give Product":

Field Description
Given Item The free item to add
Given Qty Quantity of the free item
Replace Whether the free item replaces the trigger item


POS Coupons

Coupons are codes that customers can present to activate coupon-based offers.

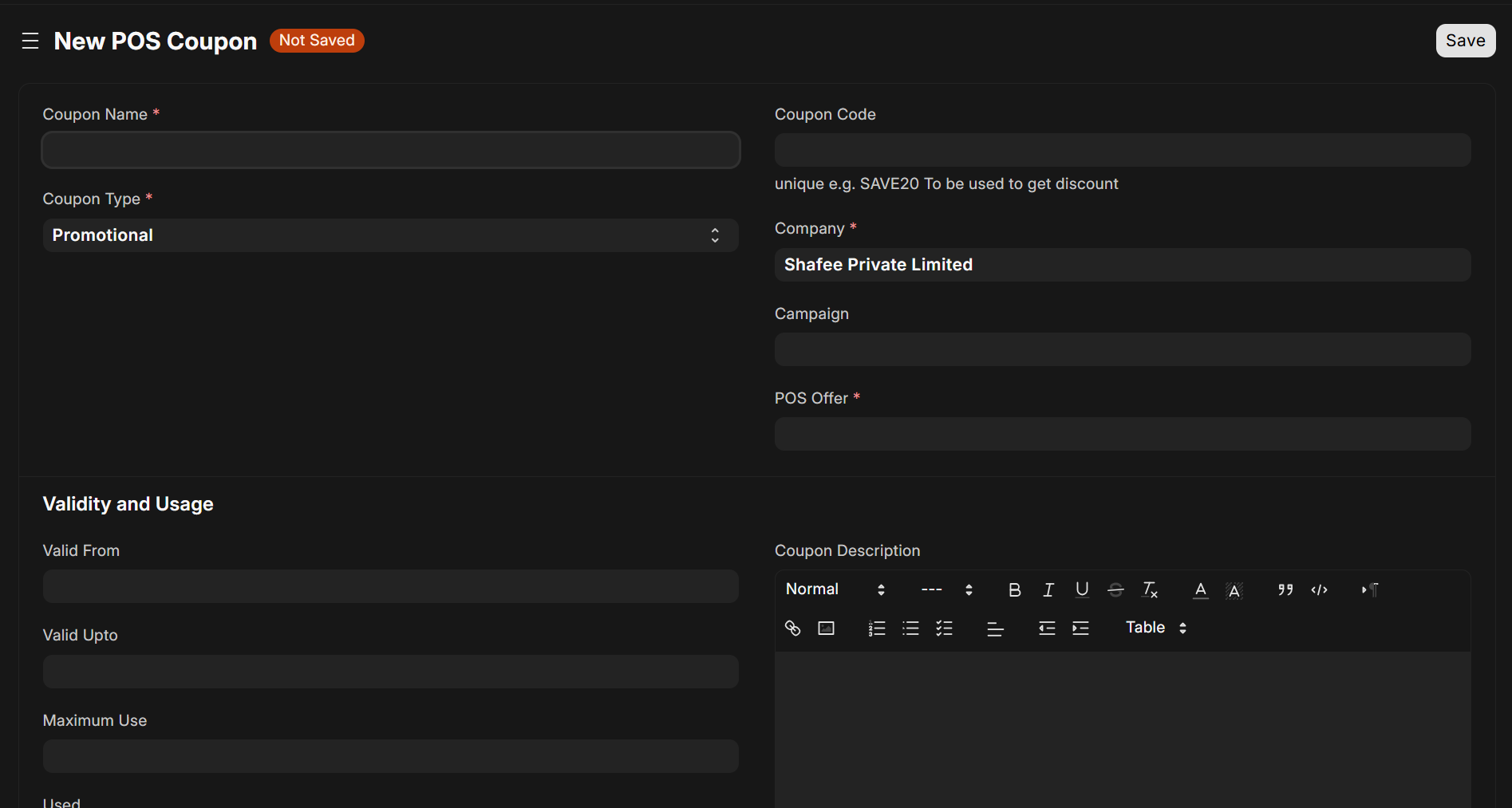

Creating a POS Coupon

Navigate to POS Coupon in your ERPNext instance.

Coupon Fields

Field Type Description
Coupon Name Data Human-readable name (also used as auto-name)
Coupon Type Select "Promotional" or "Gift Card"
Coupon Code Data Unique code the customer enters (auto-generated if left blank)
Company Link Company this coupon belongs to
POS Offer Link The POS Offer this coupon activates (must be coupon-based)
Campaign Link Marketing campaign (optional)
Valid From / Valid UpTo Date Validity period
Maximum Use Int Maximum number of times the coupon can be used (Promotional only)
Used Int Current usage count (auto-incremented)
One Use Check Limit to one use per customer

Promotional Coupons

  • Can be used by any customer
  • Usage limited by Maximum Use count
  • Ideal for marketing campaigns and promotions

Gift Card Coupons

  • Tied to a specific customer
  • Customer's name, mobile, and email are fetched automatically
  • Used count tracks redemption
  • Ideal for store credit and gift cards

Coupon Validation Logic

When a coupon is entered in X POS, the backend validates:

  1. Coupon exists with matching company
  2. Coupon is not fully used up (Used < Maximum Use for Promotional)
  3. Current date is within Valid From and Valid Up-to
  4. For Gift Cards: customer matches the coupon's customer
  5. For one-use coupons: customer hasn't already used it (checks submitted invoices)

If any check fails, an error message is returned to the POS.


Applying Coupons in X POS

Manual Coupon Entry

  1. In the Cart Summary, click the Coupon button (ticket icon)
  2. Enter the coupon code in the input field
  3. Click Apply
  4. If valid: the coupon and its linked offer are applied; a success message shows
  5. If invalid: an error message explains why (expired, used up, wrong customer, etc.)

Auto-Fetch Gift Coupons

If "Auto Fetch Coupons/Gifts" is enabled in POS Profile, the system automatically checks for available gift card coupons for the selected customer and can apply them.

Coupon in Invoice

When a coupon is applied:

  • It's stored in the Coupon Detail child table of the invoice
  • On invoice submission, the coupon's Used count is incremented
  • On invoice cancellation, the Used count is decremented
  • The coupon code appears in the order details view

Promotional Scheme Integration

X POS also integrates with ERPNext's built-in Promotional Scheme feature. When fetching offers, the system:

  1. Loads all direct POS Offers
  2. Also loads applicable Promotional Schemes and converts them to the POS Offer format
  3. Product discount rules become "Give Product" offers
  4. Price discount rules become "Item Price" or "Grand Total" offers
  5. All converted offers are auto-applied

This means existing ERPNext Promotional Schemes work seamlessly in X POS.


Offer Evaluation Logic

When offers are active, the cart automatically evaluates them whenever items change:

Item-Level Offers

For each offer that applies to specific items (Item Code, Item Group, Brand):

  1. Check if the triggering conditions are met (min qty, min amount, date range)
  2. For Item Price offers: Calculate and apply the discount to matching items
  3. For Give Product offers: Add the free item to the cart with a special Is Offer flag
  4. For Loyalty Point offers: Track bonus points for award after submission

Transaction-Level Offers

For offers that apply to the entire transaction:

  1. Check if the transaction total meets the minimum amount
  2. For Grand Total offers: Apply the discount percentage to the invoice total
  3. The discount appears in the Cart Summary as "Offer Grand Total Discount"

Free Item Sync

When offers add free items to the cart:

  • Free items are marked with Is Offer = true
  • When offers are re-evaluated (after item changes), old free items are removed and new ones added
  • Free items cannot be manually edited or removed (they're managed by the offer engine)
  • When an offer is removed, its associated free items are also removed

Delivery Charges

X POS supports configurable delivery charges that can be added to transactions.

Setup

Delivery charges are configured as a child table on the POS Profile:

Field Description
Label Display name (e.g., "Standard Delivery", "Express")
Default Rate Standard delivery rate
Rate Actual rate to charge
Shipping Account Account for the delivery charge
Cost Center Cost center for reporting

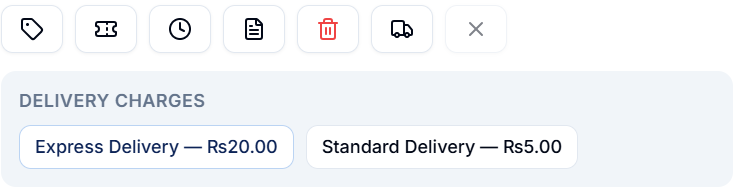

Using Delivery Charges

  1. Click the Delivery button in the Cart Summary
  2. Available delivery charges are loaded and displayed
  3. Click a charge to apply it — the amount is added to the grand total
  4. Click the same charge again to remove it
  5. Delivery charges are not available in Return Mode
  6. If "Auto Set Delivery Charges" is enabled, the default charge is automatically applied
